Part No : FP2213
Designed for larger units & humid environments, the ‘all-in-one system’ Maxi Lime elbow pump gives you supreme power when needed. (‘Pump only pack’ also available)
Key Features :-
- Sits in trunking elbow
- Left or right install
- Range of trunking systems
- Easy access for servicing
Suitability :-
- Up to 46kW / 157,000Btu/h
- Large commercial AC units; High wall split systems
- Perfect for… Large commercial high wall split units
Specifications :-
- Data Based @ 230 VAC 50Hz
- Max. flow : 35L/h
- Max. rec. head : 15m
- dB(A) : 35
- Power supply : 230 VAC, 0.11A, 16W, 50/60Hz
- Rated : Non continuous
- Class : II appliance
- Max. unit output : 46kW / 157,000Btu/h
- Max. water temp : 40°C / 104°F
- Discharge tube : 6mm ID
- IP Protection : IP24
- Safety switch : 3.0A Normally closed
- Thermal protection : ✓
- Fully potted : ✓
- Self priming : ✓

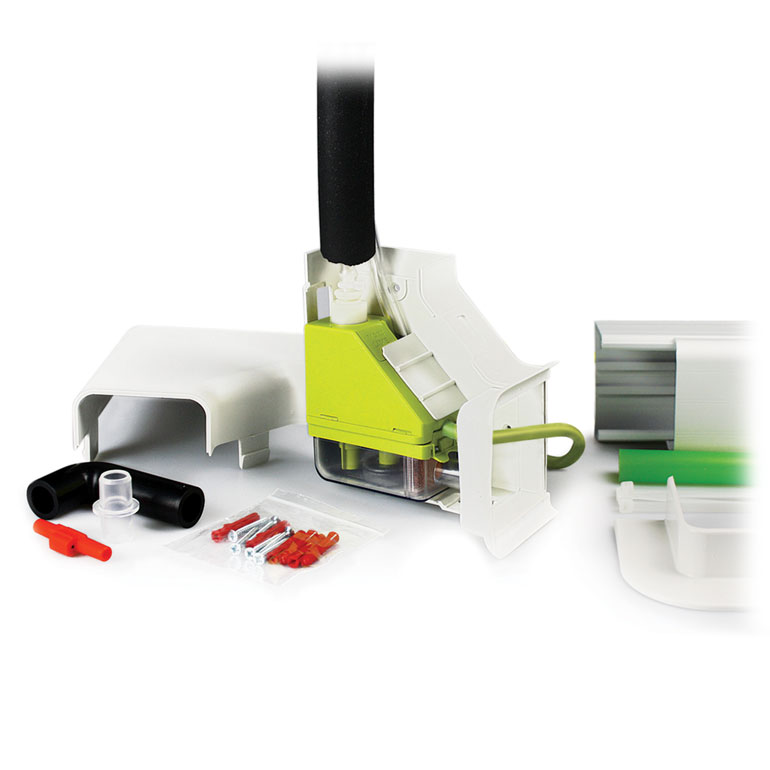

In The Box :-
- Maxi Lime pump (inc. 750mm discharge tube with 6mm ID connector and 1.5m hard wired power cable)
- 500mm Lime green inlet hose 14mm ID
- 40mm Vinyl breather tube 6mm ID
- Anti siphon device
- Elbow front and back
- 800mm conduit front and back
- Gasket (BBJ and Inoac/Inaba systems only)
- Ceiling plate
- Drain connector kit
- Fixing kit Install manual
