Part No : X87-859

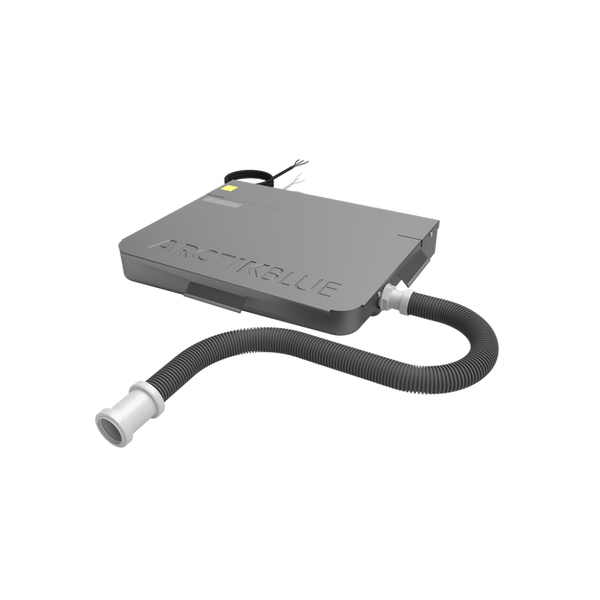

Blue Diamond ArctikBlue Dairy Cabinet Pump
- Includes Fail Safe Alarm
- Ideal for refrigeration units and dairy cabinet pumps

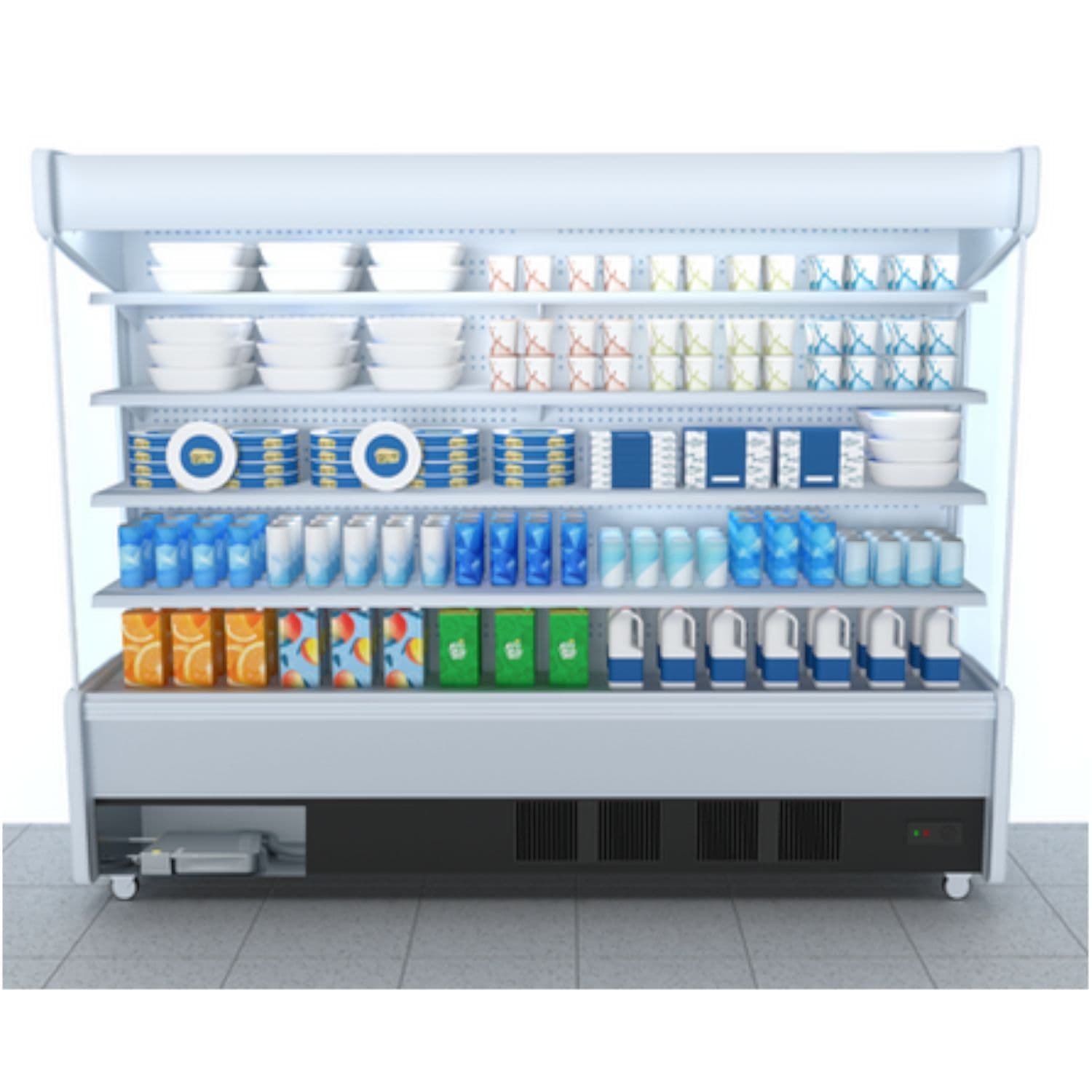

The ArctikBlue® is designed to collect, filter and pump condensate water from refrigeration units during daily operation and defrost cycles. The rotary diaphragm pump provides a quiet, reliable and self priming operation. Incorporating a low profile dairy pump into the design of a cabinet gives the advantage of additional refrigerated retail space.
Performance :-
- Max Flow: 50 L/Hour
- Max Head: 20 Metres
- Water Tank Capacity: 4.1 Litres
- Pump On/Off: 330 ml
- On Volume: 3600 ml
Features :-

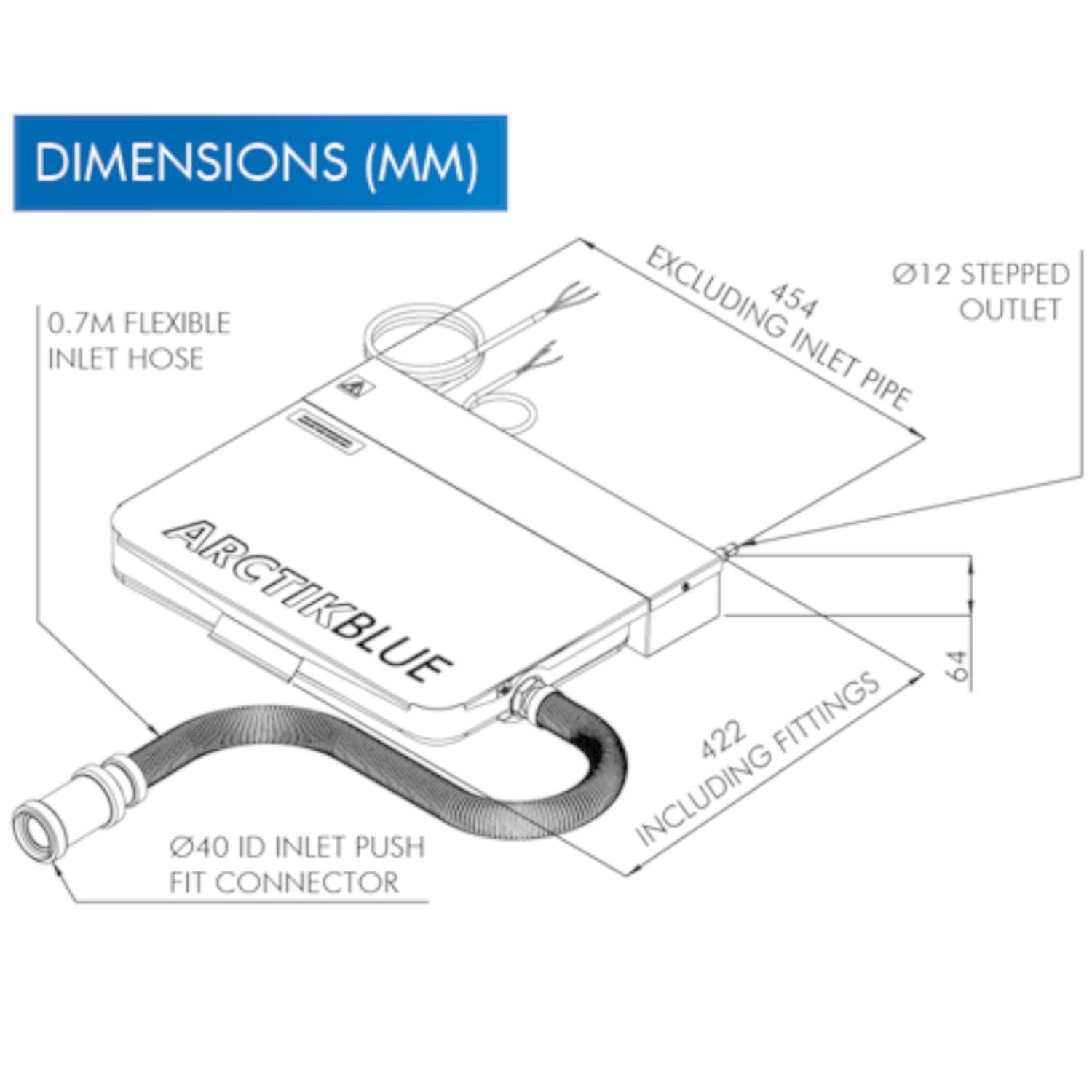

- Low profile (68mm)
- Easy to install
- Self priming
- Runs the system dry
- Can remove sludge and slurry
- Fault free sensing
- Designed for smaller free standing fridges
- Easy and simple to fit
- Inlet 40mm Push Fit / Solvent Weld
- Outlet 12mm Hose Tail
Technical Specs Datasheet
