Part No : REDBOX-TRUNK

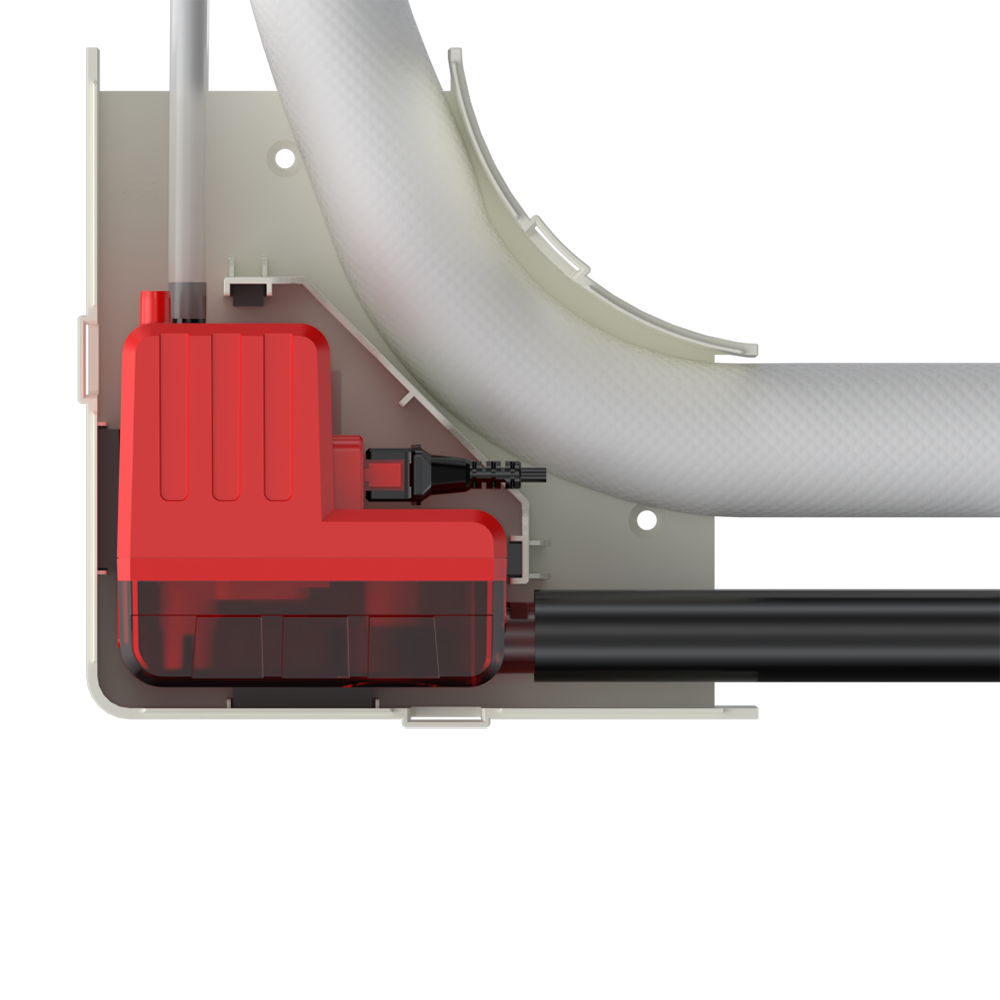

A mini condensate pump in the REDBOX series of pumps. Designed to automatically remove the drainage liquid produced by air conditioners of a maximum 7kW cooling capacity.
Specifications :-
| Item: | Specification: |
| Use with: | Air conditioner (Max 7kW) |
| Power supply: | 110-240V, 50/60Hz |
| Electrical output: | 3W |
| Safety switch contacts: | Max. 3A |
| Max. discharge head: | 15m |
| Max. flow rate at zero head: | 20 LPH |
| Fluid: | Fresh water of 1-40°C |
| Non-continuously rated operating time: | 5 min on / 1min off |
| Decibel rating: | 21db(A) |
| Pump size (LxWxH): | 95.4 x 44 x 109.7mm |
| Reservoir size (LxWxH): | 81 x 44 x 24.9mm |
| Trunking size (WxH): | 80 x 60mm |
| Drink cycle: | 16ml |
Flow Rates :-
| Head | 0m | 2m | 4m | 6m | 8m | 10m | 12m | 14m | 15m |
| LPH | 20 | 18 | 16 | 14 | 10 | 8 | 5 | 2 | 0 |
