JAV-1353

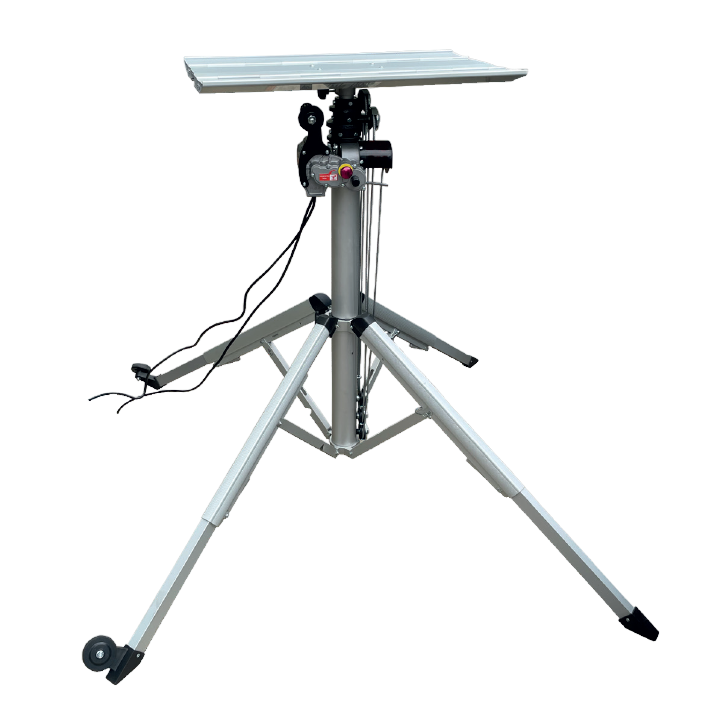

- Javac EDGE 240v Portable Lifter is the ultimate solution designed to assist with the lifting and positioning of heavy equipment in the HVAC industry.
- The Lifter is suitable for use with Condensers, Evaporators, Ductwork, air handling units, pipework plus many other uses.
- Featuring its extendable legs, wide platform base and robust design the lifter offers unparalleled suitability and adaptability for almost all HVAC lifting and positioning requirements.
- Designed to endure tough conditions allowing you to work safely, securely and efficiently!
Product Details :-
- Operational Voltage : 220V ~ 240V @ 50/60Hz
- Operation Current : 4 Amp
- Motor Duty : S3 30%
- Plug Type : EU plug and UK plug adaptor
- Max. Load Capacity : 130kgs (3.0m height) | 120kgs (3.7m height)
- Basic Height : 1m
- Lifting Height : 3.69m
- Standard Platform : 75 x 44cm
- Operating Size : 115 x 118cm
- Length of controlling : cable 4m
- Length of power cord : 2.7m
- Ambient temperature : -5 °C to 45 °C
- IP Level : IP43
- Packaging box size : 102 x 28 x 33cm
- Net weight : 30.5kgs (Machine 24kgs + Platform 4.8kgs)
- Gross weight : 33kgs
- Bag : Bag with wheels
- Accessories : Manual Handle
- Safety Standard : EN 60204-1:2018 / EN ISO 12100:2010
- Compliance : WEEE / CE / UKCA
Contains :-
1 x Platform
1 x Telescoping mast
1 x Pulley with pulley cover
1 x Steel cable
1 x Motor and gearbox
1 x Sliding ring
4 x Legs
1 x Wheel
1 x Lever to select going up or down
1 x Emergency Stop push button
1 x Trigger button to control speed
