Part No : 3004259

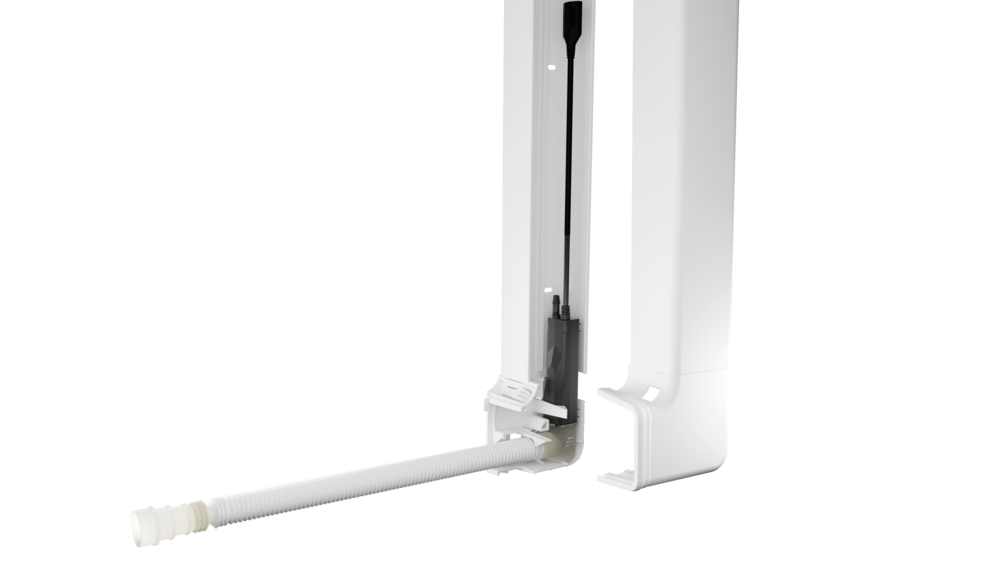

The compact corner condensate pump with complete duct set
VAMP-CDK is REFCO’s first condensate pump supplied with a complete duct system – for a smart and space-saving installation in the corner of the duct. The refined design enables a stable, concealed installation close to the air conditioning unit – for a clean look and whisper-quiet operation.
All-in-one for new installations:
The compact duct set of VAMP-CDK – consisting of the condensate pump, duct corner, duct and collar – enables a stable, slim corner installation with minimal space requirements. Thanks to the specially shaped duct corner, the pump can be installed directly at the air conditioning unit – for a compact, discreet solution that meets the highest standards of technology and design.
Quiet, precise, powerful
With a sound level below 18 dB(A), VAMP-CDK operates almost silently – ideal for use in sensitive areas.
The optical sensor ensures accurate level measurement and low-maintenance operation. The powerful diaphragm pump delivers up to 22 litres per hour and achieves a discharge head of up to 15 metres – suitable for air conditioning units up to 18.5 kW (63,000 BTU/h) cooling capacity.
- Compact all-in-one duct set for corner installation close to the unit – including duct corner, duct and collar
- Invisible fastening for a clean installation image
- Compatible with common duct systems
- Easy installation close to the wall unit
- Expandable corner hose: integrates filter, adapter and water reservoir
- Whisper-quiet operation: below 18 dB(A) thanks to diaphragm technology and vibration damping
- Pump capacity: up to 22 litres per hour
- Discharge height: up to 15 metres
- Optical level sensing: precise and resistant to interference
- Integrated switching power supply: universal operation with 100–240 VAC
- Sustainability: housing made from plant-based material
- Manufactured in Switzerland
Ideal for small wall mounts using 1/4 and 3/8 pipe
