Technical Specs :-
DP10CE05UN23 –
in Ral9003 White – for all A/C systems up to 20KW

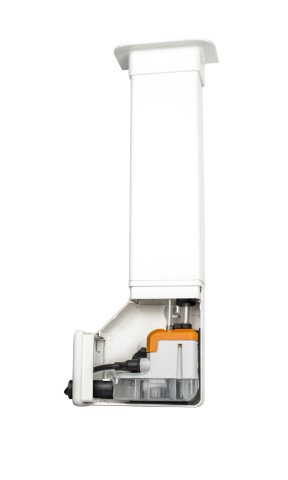

Complete kit intended for wall mounted air conditioning units. Includes a new elbow design that can be easily opened by hand by a simple finger push – no tool is needed – and the Si-10 UNIVERS’L pump which incorporates the latest in piston pump technology. The new Delta Pack’s streamlined design complements wall mounted air conditioning units. Low sound level and highly resistance to pollution created by the general environment.
- Proven Reliability
- Easy Installation and Maintenance
- Improved Design
- Quiet
APPLICATIONS
- Wall split systems
- Ducted units
- Ceiling Mounted
- Fan-coil units
| Max flow rate | 20 l/h |
| Max discharge head | 10 m |
| Max pressure | 14 m |
| Insulation class | Double insulation |
| Mains supply | 230V ~ 50/60Hz ~ 14W |
| Operation conditions | 100% |
| Protection | IPX4 |
| Weight | 1,55 kg |
| Colour | RAL 9003 |
| Master pack quantity | 5 |
| Safety switch | NC 8 A resistive – 250 V |
| Detection | Integrated detection floats |
| Thermal protection | 115°C (automatic re-starting) |
BENEFITS
- Unmatched reliability
- Easy plug in electrical connection
- Low sound level : 23dBA
- Energy saving
