Part No : SI51CE01UN23

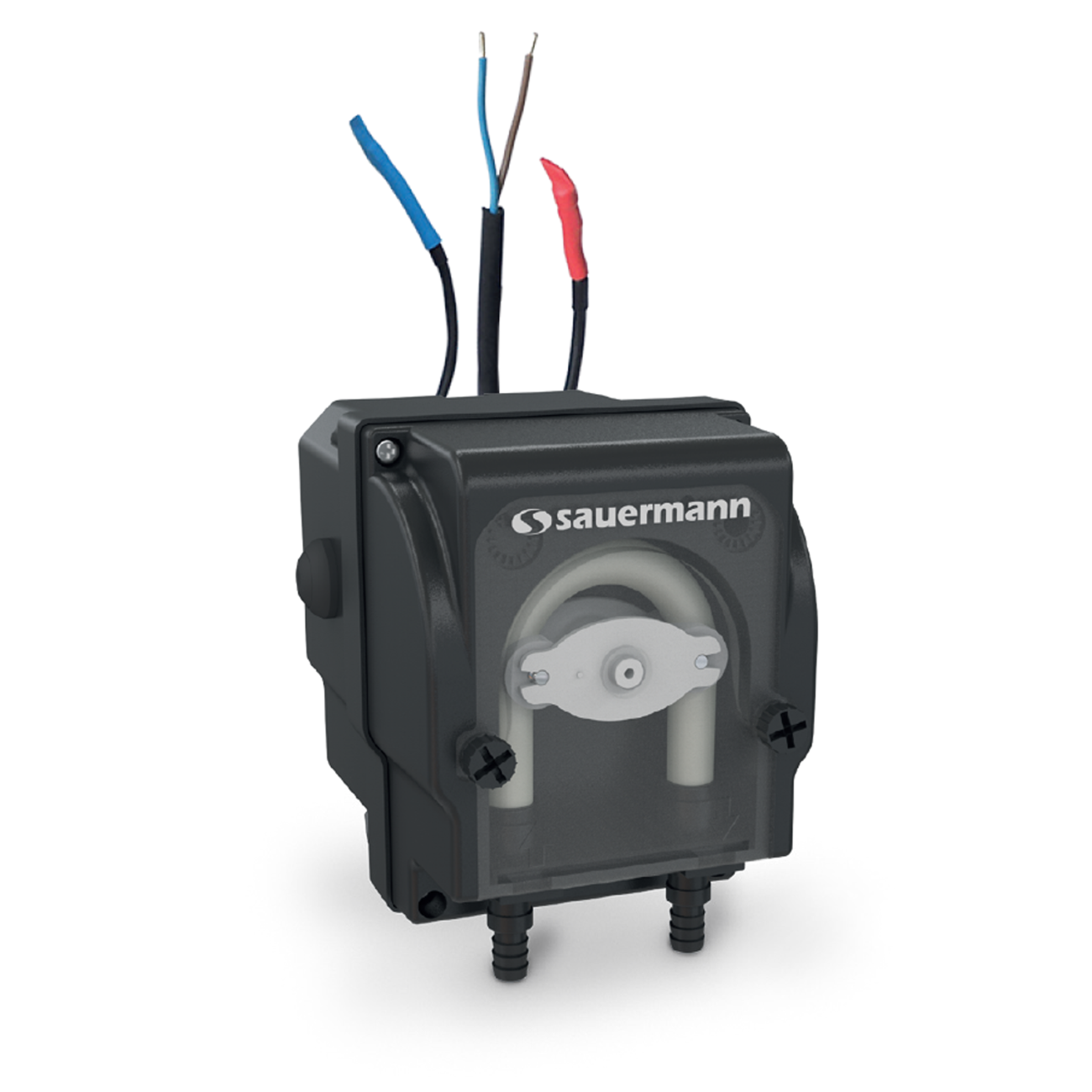

This peristaltic condensate pump is designed for all types of air conditioners up to 8 kW: wall units, air conditioning cabinets, ceiling units and ducted units.
Equipped with two remote temperature sensors, the Si-51 activates when the temperature difference between the air entering and leaving the air conditioner exceeds 6 °C. The pump continues to run for 4 minutes when the temperature difference falls below 6 °C.
Ideal applications:
• Businesses and industries with high levels of dust (bakeries, etc.) and chemicals (hairdressers, etc.)
• Hotels (maintenance possible without accessing the rooms)
Important: the Si-51 is incompatible with reversible and inverter systems as it must not be used in continuous operation.
Technical Specs :-
| Max flow rate | 6 l/h |
| Max discharge head | 12 m |
| Max suction head | 2 m |
| Mains supply | 230 V ~ 50/60 Hz – 8 W |
| Protection | IP55 |
| Detection | Temperature differential |
Pump Dimensions :-
Kit Contents :-
- 1x Peristaltic pump Si-51
- 1x Cable: 1.7 m, including 2 wires for power supply (P & N)
- 2x thermal probes with 3.5 m cable: – Red cap for ambient air – Blue cap for fresh air
- 1x Easy 2-screw sliding plastic bracket
- 1x Ø 15 mm to Ø 6 mm adaptor + sleeve (Ø 15 x 35 mm) – (ACC00927)
