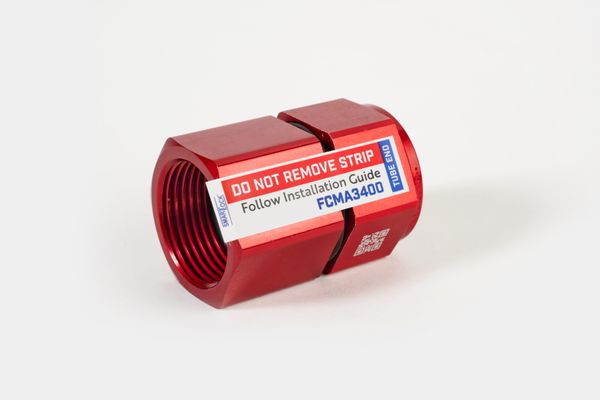

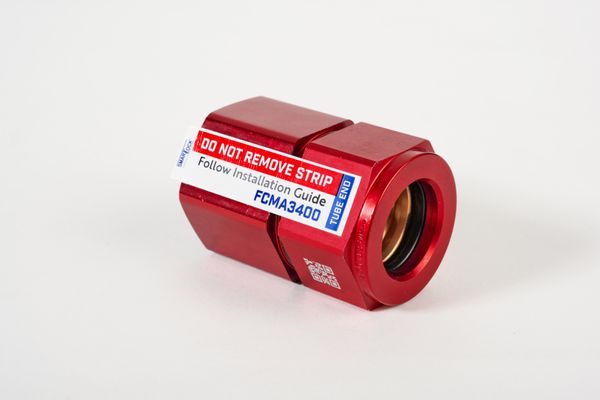

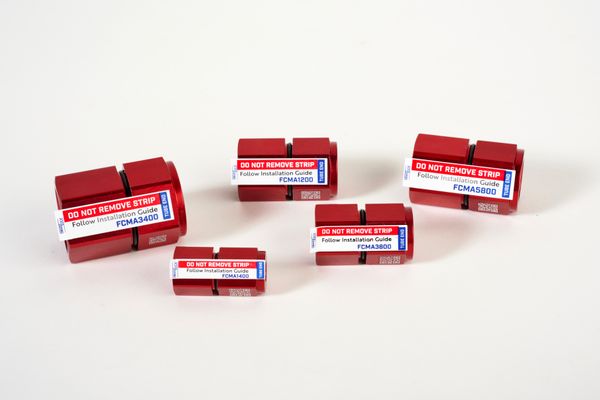

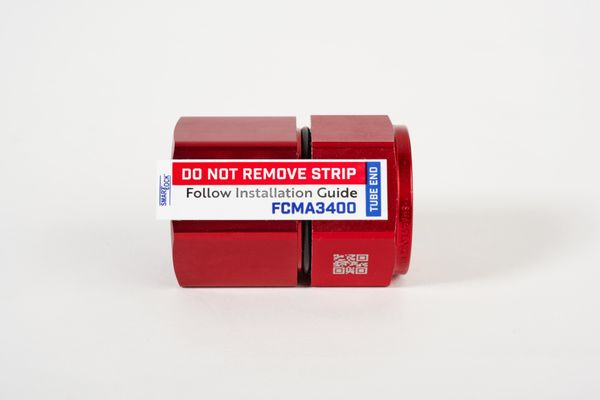

FCMA1200
METAL TO METAL SEAL
Our patented Metal to Metal Sealing Technology creates a permanent zero leak seal. SmartLock Fittings utilize metal ferrules, instead of O-ring seals, and installed with wrenches. As the outer nuts are tightened with wrenches, internal mechanism applies pressure on the metal ferrule, forcing the ferrules onto the tube and/or valves, and creating a permanent indentation that will hold up to average pressure of 1700 psi.

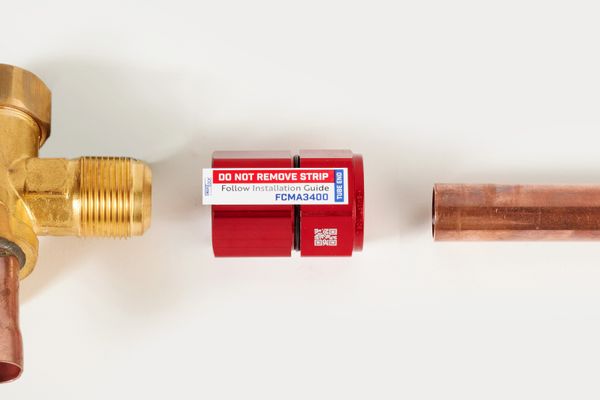

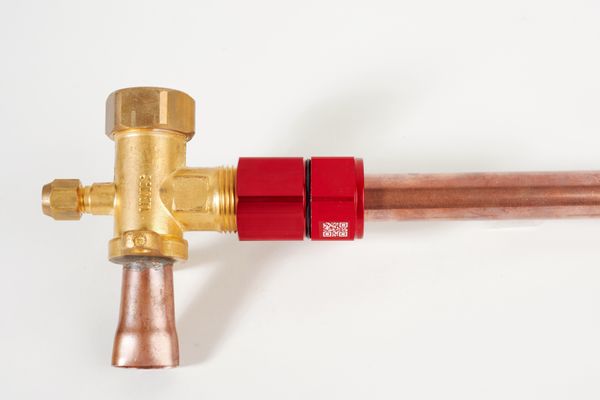

Connects copper/aluminium tube to flare valves without the need for flaring.
WORKING PRESSURE RANGE
- Design Pressure – Size
- 1300 psig – 1/2″
BURST PRESSURE RANGE
- Burst Pressure – Size
- 8000 psig – 1/2″
TEMPERATURE RANGE
-40° F to 320° F (-40°C to 150°C)
REFRIGERANT
Authorized for use in ANY refrigerants
R-717(Ammonia), R-410A (R-32 50%, R-125 50%), R-22 (Chlorodifluormethane), R-134a (1,1,1,2-Tetrafluoroethane), R-744 (Carbon dioxide)
